Product Description：

Specification:

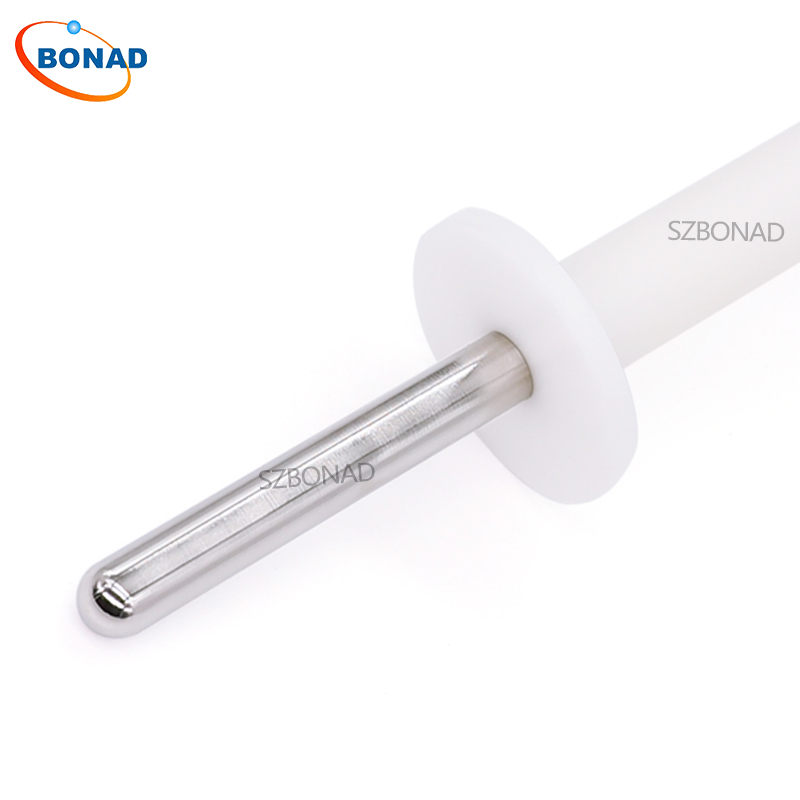

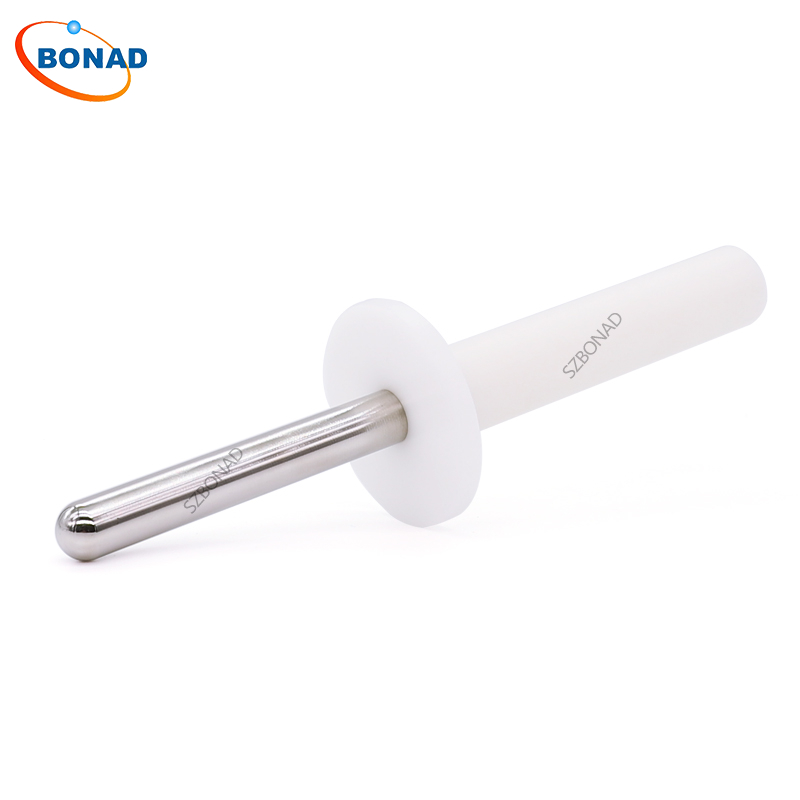

Test Probe,12 mm Test Probe,

According to : GB4943， IEC950，GB8898、IEC60065， IEC62151，UL6500

Technical parameters

1, Probe Diameter:12mm

2, Probe Ball Diameter: 6mm

3, Probe Length: 80mm

4, Baffle Plate Diameter:50mm

5, Baffle Plate Thickness :5mm

6, Handle Diameter:10mm

7, Handle Length:100mm

Application:

The 12mm metal parts of the Test Probe can not touch the live parts or not close to hazardous parts,and 50mm baffle plate can not be entered . In the test requirements of protected against access to the hazardous parts.The Thrust Test Finger should be applied thrust

Note:

Test Probe is made of precision stainless steel, taking up and putting down slightly when using, pay attention to maintenance.
